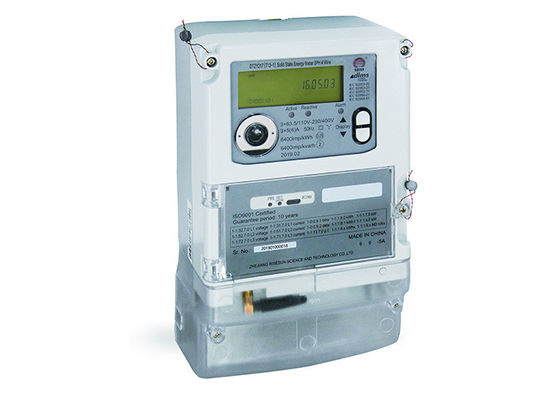

GPRS PLC LORA Kwh Meter Digital 3 Phase Dlms Smart Meter Class 0.5 S Accuracy

GPRS PLC LORA Kwh Meter Digital 3 Phase Dlms Smart Meter Class 0.5 S Accuracy
GPRS PLC LORA Kwh Meter Digital 3 Phase Dlms Smart Meter Class 0.5 S Accuracy

Large Image :  GPRS PLC LORA Kwh Meter Digital 3 Phase Dlms Smart Meter Class 0.5 S Accuracy

Product Details:
Place of Origin: China. Zhejiang
Brand Name: RISESUN
Certification: KEMA
Model Number: DTZY217(T13-1)
Payment & Shipping Terms:
Minimum Order Quantity: 500 pcs
Price: negotiation
Packaging Details: Carton
Delivery Time: 30 work days
Payment Terms: L/C, T/T,negotiation
Supply Ability: 100,000 pcs per month

GPRS PLC LORA Kwh Meter Digital 3 Phase Dlms Smart Meter Class 0.5 S Accuracy

Description
Name: GPRS PLC LORA Kwh Meter Digital 3 Phase Dlms Smart Meter Class 0.5 S Accuracy Standards: IEC62052-11; IEC62053-21;IEC62053-22; IEC62053-23;IEC62056-21 Protocol IEC62056-21;IEC62056-42;IEC62056-46;IEC62056-53;IEC62056-61;IEC62056-62;
Reference Voltage: 3×57.7/100V;3×120/208V;3×220/380V;3×230/400V Reference Frequency: 50/60 Hz
Power Consumption: <1.5W, 6VA(per Phase) RTC Deviation: ≤0.5s/d
Net Weight: About 2.8kg
High Light:

Three Phase Dlms Smart Meter

,

risesun digital kwh meter 3 phase

,

risesun 3ph smart meter dlms protocol

Three Phase Smart Meter with Communication as per DLMS



General introduction

Three Phase Smart Meter with Communication as per DLMS is with wide voltage range and four tariffs, and used for measuring the import and export active and reactive energy. It also supports optical port and Plug& Play module such as GPRS, RF, PLC, ZigBee, etc. The meter includes metering, RTC, load control unit and other component.



Main functions

  • LCD display​
  • Active, reactive impulse output
  • Abnormal power consumption alarm
  • Remote disconnection and reconnection control
  • One RS485, one RS232 and one optical port, all interfaces are independent
  • Plug& Play modules (GPRS,3G, RF, PLC etc.)
  • TOU for import and export active energy, reactive energy and apparent energy
  • TOU for import and export active M.D., reactive M.D. and apparent M.D. with timestamp
  • TOU for import and export active cumulative demand, reactive cumulative demand and apparent cumulative demand
  • TOU for average power factor
  • TOU for average frequency
  • Billing (automatically or manual mode)
  • M.D. reset
  • Recording Multi-channel load profile
  • Measuring voltage, current, neutral current, active power, reactive power, apparent power, power factor, phase angle, frequency per phase, etc.
  • Events logs: power outage, demand reset, under voltage, overvoltage, phase loss, current reverse, voltage phase sequence reverse, voltage unbalance, current unbalance, meter cover open, meter terminal cover open, etc.
  • Hardware failure alarm
  • Meter reads when power outage
  • Power quality monitor: under voltage, overvoltage, phase loss, voltage unbalance, current unbalance, etc.
  • Anti-tamper: phase bypass, current reverse, voltage phase sequence reverse, meter cover open, meter terminal cover open, etc.
  • With KEMA Certificate.

Technical specifications

Items contents
Standards IEC62052-11; IEC62053-21;IEC62053-22; IEC62053-23;IEC62056-21
Protocol IEC62056-21;IEC62056-42;IEC62056-46;IEC62056-53;IEC62056-61;IEC62056-62;
Accuracy Active: Class 0.2S,0.5S or Class 1 Reactive: Class2
Reference voltage 3×57.7/100V;3×120/208V;3×220/380V;3×230/400V
Current Current transformer connection:1.5(6)A,5(6)A,5(10)A, Direct connection:
10(40)A,10(60)A,20(80)A,10(100)A
Reference frequency 50/60 Hz
Power consumption <1.5W, 6VA(per phase)
Operation voltage range 0.8Un~1.2Un
Limited operation voltage range 0.7Un~1.3Un
Operation temperature -25℃~ +60℃
Limited operation temperature range -40℃~ +70℃
RTC deviation ≤0.5s/d
Size 290mm(L)×170mm(W)×85mm(H)
Life time 15 years
Net weight About 2.8kg

Q & A

Q: What kind of timing functions do smart energy meter have? How about the accuracy?



A: Smart energy meter adopts built-in hardware clock circuit with temperature companion function, which has automation conversion function among calendar, time and leap year; the output frequency of internal clock terminals of energy meter is 1 Hz. Within the temperature range of 25~+60℃, the clock accuracy is ≤±1s/d; Under the reference temperature (23℃), the clock accuracy is ≤±0.5s/d. It adopts green environmental protection lithium battery as standby power supply, and the capacity of battery is more than 1.2Ah. During the life cycle of energy meter, the battery needn’t to be changed, and it can make internal clock work correctly for more than 5 years after power outage.
