|Meter Type:||Three Phase Four Wire Multi-tariff Electronic Meter||Name:||3 Phase Import Export Energy Meter Accuracy Class 0.2s 0.5s Multi Tariff|
|Accuracy:||Active:Class 0.2S Or Class 0.5S Or Class 1.0; Reactive: Class 2||Protocol:||DL/T 645-2007|
|Reference Voltage:||3×57.7/100V;3×220/380V||Current:||CT Connection: 1.5(6)A,5(6)A,5(10)A; Direct Connection: 10(40)A,10(60)A,20(80)A,10(100)A|
|Reference Frequency:||50/60 Hz||Power Consumption:||<1.5W,6VA(For Each Phase)|
energy meter accuracy class 0.5s,
RISESUN 3 phase import export meter,
import export electricity meter

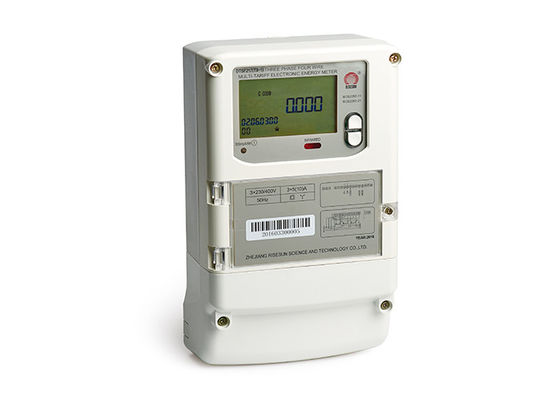

Three Phase Four Wire Multi-tariff Electronic Meter supports import and export metering
DTSF217(T9-1) Three Phase Four Wire Multi-tariff Electronic Meter supports import and export metering with TOU or step tariff functions. It can record various events and meter can be read during power outage.
|Standards||IEC62052-11; IEC62053-21; IEC62053-22; IEC62053-23;|
|Accuracy||Active:Class 0.2S or Class 0.5S or Class 1.0;Reactive:Class 2|
|Current||CT connection:1.5(6)A,5(6)A,5(10)A, Direct connection:10(40)A,10(60)A,20(80)A,10(100)A|
|Power consumption||<1.5W,6VA(For each phase)|
|Operation voltage range||0.8Un~1.2Un|
|Limited operation voltage range||0.7Un~1.3Un|
|Operation temperature range||-25℃~ +60℃|
|Limited operation temperature range||-40℃~ +70℃|
|Life time||15 years|
|Net weight||About 2.8kg|
Q1:What is the AMI system ?
Advanced Metering Infrastructure (AMI) is the technology of automatically collecting data from energy metering devices and transferring that data to a central database by communication technology for remote control and analyzing. RS801E AMI system is composed of management software, remote communication channel, power management terminal, regional summary meter, local communication channel, user energy meter and other equipments. Power companies can build AMI system to replace the manual meter reading to save human resources, reduce meter reading costs and improve meter reading efficiency and success rate. The AMI system reduces the error rate, the electricity loss and eliminates the false meter reading by personnel. The AMI system also can monitor the status of the users and find the abnormal information to alarm in time. It also collects data from regional summary meter and the regional line loss can be calculated. The software system is developed by Java and it can be deployed on Windows, Unix, and other major operating systems. The system is developed based on Enterprise-class Jave EE standards, a three-tier technical architecture (client / middleware server / database server) as the basis for the system. The system has excellent openness, scalability, flexibility and high reliability. Many advanced computer and communication technologies are used on this AMI system to satisfy the needs of power companies in different environments.
Q2:What is the smart energy meter? What are the functions of smart energy meter?
As a new-type energy meter, smart energy meter adopts digital metering technology, consists of measuring unit, data processing unit, communication unit, etc., and has various functions such as energy metering, data processing, real time monitoring, automatic control, information exchange, etc.
In addition to the above functions, smart energy meter also supports various actual requirements, such as bidirectional metering, step tariff, TOU tariff, peak-valley tariff, etc. It’s also the technology base to achieve distributed power measurement, two-way interactive service, smart home and intelligent community.
