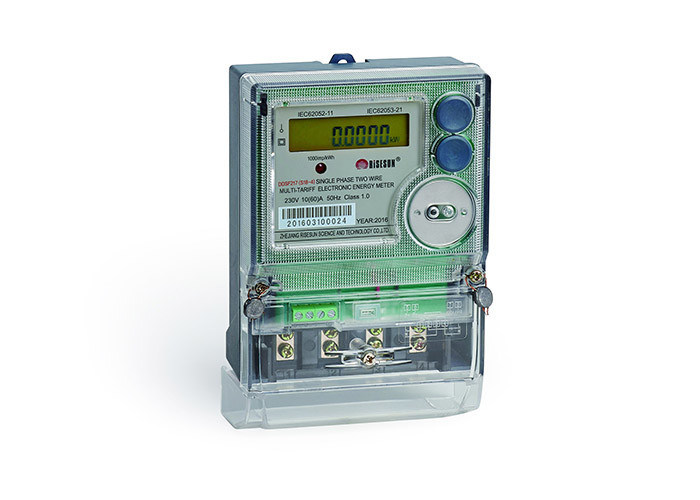

Ami Power Meter Multi Tariff 10 60 A

Single Phase Multi-tariff Electronic Meter

General introduction

Technical specifications

Main functions

• Display and indication: It adopts wide viewing angle LCD with backlight and the meter can be read and inquired with backlight. The displayed contents can be switched via button, and the displayed items can be configured as per the requirements.One kWh impulse isolated output and one kWh impulse LED.
• Metering: Import, export and total kWh metering, the total kWh can be combined by import and export kWh.
• TOU function:4 tarifs; Built-in 2 sets of time zone tables. Calendar and clock are available. It can set 8 time periods with minimum 15 minutes in 24 hours.
• Billing: It can record latest 12 time's billing historical data including total kWh and kWh of each tariff. If billing time is missed during a power outage,all billing data will be supplemented with latest 12 times when the power is on.
• Measurements: It can measure various parameters such as voltage, current(neutral), power, power factor, etc.
• Event logs: It can record programming, meter cover open, terminal cover open, power outage, time correction with timestamp, etc.
• Communication interface: RS485 and far infrared.
• Meter can be read during power outage.

Q&A

Q: What are the advantages of the  AMI system?

A: 1. Flexibility of configuration:

1.1 Function modularization: It can customize the equipment and separately deploy the modules according to the size of the management scale.

1.2 The function is hierarchically designed, which can guarantee clear logic, convenient maintenance and the stable operation.

2. Diversity of management:
Managing range covers the different types of energy consumed objects, such as Substations, Users with special transformer, Distribution transformers, Residential Users, etc. It can configure the relevant managing function according to the type of object.

3. Compatibility of equipments:
The users can choose the appropriate mode of network (such as GPRS, PLC, WSN or 485), the collection equipments (such as various energy meters or concentrators) and the operation protocol of equipments according to their own situation. The system can provide support or expansion.
