Product Details:
|
| Standards: | IEC62052-11 IEC62053-21 | Protocol: | DL/T645 2007 |
|---|---|---|---|
| Current: | 10(60)A | Power Consumption: | <1W,10VA |
| Operation Voltage Range: | 0.8Un~1.2Un | Operation Temperature: | -25℃~+60℃ |
| High Light: | DL T645 2007 SMT Multi Tariff Meter,DL T645 2007 LCD Multi Tariff Meter,DL T645 2007 energy meter asic |
||

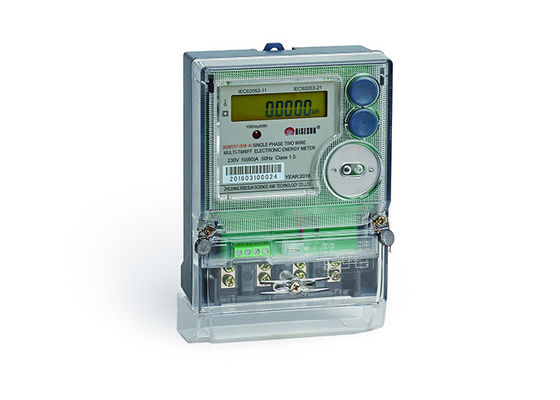

Single Phase Multi-tariff Electronic Meter adopts advanced ASIC, LCD, SMT technology
General introduction
1) Single Phase Multi-tariff Electronic Meter adopts advanced ASIC, LCD, SMT technology with TOU or step tariff functions. It is featured with high accuracy and reliabity, low power consumption, long life, etc.
2 ) The Billing can record latest 12 time's billing historical data including total kWh and kWh of each tariff. If billing time is missed during a power outage,all billing data will be supplemented with latest 12 times when the power is on.
3 ) The communication has infrared and RS485 interface.
Technical specifications
| Items | contents |
| Standards | IEC62052-11 IEC62053-21 |
| Accuracy | Active:Class 1 |
| Protocol | DL/T645 2007 |
| Reference voltage | 120V/220V/230V/240V |
| Current | 10(60)A |
| Reference frequency | 50/60Hz |
| Power consumption | <1W,10VA |
| Operation voltage range | 0.8Un~1.2Un |
| Limited operation voltage range | 0.7Un~1.3Un |
| Operation temperature | -25℃~ +60℃ |
| Limited operation temperature | -40℃~ +70℃ |
| RTC deviation | ≤0.5s/d |
| Life time | 15 years |
| Size | 170.5mm(L)×112mm(W)×58mm(H) |
| Net weight | About 0.6kg |
Main functions
It adopts wide viewing angle LCD with backlight and the meter can be read and inquired with backlight. The displayed contents can be switched via button, and the displayed items can be configured as per the requirements.One kWh impulse isolated output and one kWh impulse LED.
Import, export and total kWh metering, the total kWh can be combined by import and export kWh.
4 tarifs; Built-in 2 sets of time zone tables. Calendar and clock are available. It can set 8 time periods with minimum 15 minutes in 24 hours.
It can record latest 12 time's billing historical data including total kWh and kWh of each tariff. If billing time is missed during a power outage,all billing data will be supplemented with latest 12 times when the power is on.
It can measure various parameters such as voltage, current(neutral), power, power factor, etc.
It can record programming, meter cover open, terminal cover open, power outage, time correction with timestamp, etc.
Q&A
Q1:What are the differences between smart energy meter and ordinary energy meter?
A1:
1) As a new-type energy meter, smart energy meter adopts digital metering technology, consists of measuring unit, data processing unit, communication unit, etc., and has various functions such as energy metering, data processing, real time monitoring, automatic control, information exchange, etc. Besides, it is provided with multiple functions, such as forward and reverse measurement, TOU measurement, remote meter reading, remote monitoring and control, electrical parameters measurement, security protection of consumed energy information, event logs, etc.
2) Ordinary energy meter only has the energy metering function.Compared with previous energy meters, smart energy meter is added many new functions, such as measurement information management, information management of energy consumed, monitoring of energy quantities consumed, etc., which can better provide users with accurate and timely billing function.
3) It has the bidirectional metering function and supports the distributed energy utilization. In addition to recording the import energy, it also can record the export energy. If the user is self-built with distributed clean energy generation facilities, such as wind energy, solar energy, etc., it can realize to transmit the spare energy to power grid when the generated power cannot be exhausted, thus achieve energy conservation and environmental protection to reduce carbon dioxide emissions, create low carbon life and improve the users' economic benefits.
