Product Details:
|
| Name: | Cyclometer Register Double Phase Electric Meter Class 1 Accuracy Iec 62052 11 | Keyword: | Electric Kwh Meter |
|---|---|---|---|
| Technical Standards: | IEC 62052-11；IEC 62053-21 | Accuracy: | Active: Class 1 |
| Nos.of Wires: | 3 | Reference Voltage: | 2×127/220V |
| Current: | 5(100)A | Reference Frequency: | 50/60 Hz |
| High Light: | Iec 62052 11 Cyclometer Double Phase Electric Meter,iec 62052 11 2 Phase Electric Meter,Iec 62052 11 Cyclometer 2 Phase Electric Meter |
||

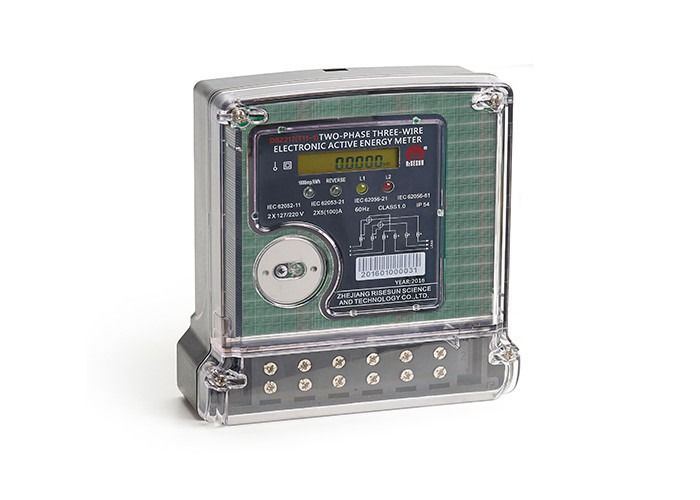

Two Phase Anti-tamper Electronic Meter with Cyclometer Register
General Introduction
Two Phase Anti-tamper Electronic Meter with Cyclometer Register is the low cost electronic active energy meter based on
solution. It adopts the cyclometer register to display the energy. It has faults indication functions and protection rating is IP54, it can normally measure energy under 300mT magnetic field.
Main functions
● Register display: 5 integers
● Active energy metering
● LED indication: (power reverse, potential loss, etc)
Technical Parameters
| Items | Contents |
| Technical standards | IEC 62052-11；IEC 62053-21 |
| Accuracy | Active: Class 1 |
| Nos.of wires | 3 |
| Reference voltage | 2×127/220V |
| Current | 5(100)A |
| Reference frequency | 50/60 Hz |
| Power consumption | ＜1.5W,10VA per phase |
| Operation voltage range | 0.8Un～ 1.2Un |
| Operation temperature range | -25℃～ +60℃ |
| Life time | 15 years |
| Size | 160.1mm(L)×148mm(W)×57.5mm(H) |
| Net weight | About 0.85kg |
