Product Details:
|
| Operation Voltage Range: | 0.8Un~1.2Un | Limited Operation Voltage Range: | 0.7Un~1.3Un |
|---|---|---|---|
| Operation Temperature Range: | -25℃~ +60℃ | Limited Operation Temperature Range: | -40℃~ +70℃ |
| RTC Deviation: | ≤0.5s/d | Life Time: | 15 Years |
| High Light: | din rail mounted single phase kwh meter,RISESUN 1 fase Kwh Meter Din Rail,RISESUN single phase din rail kwh meter |
||

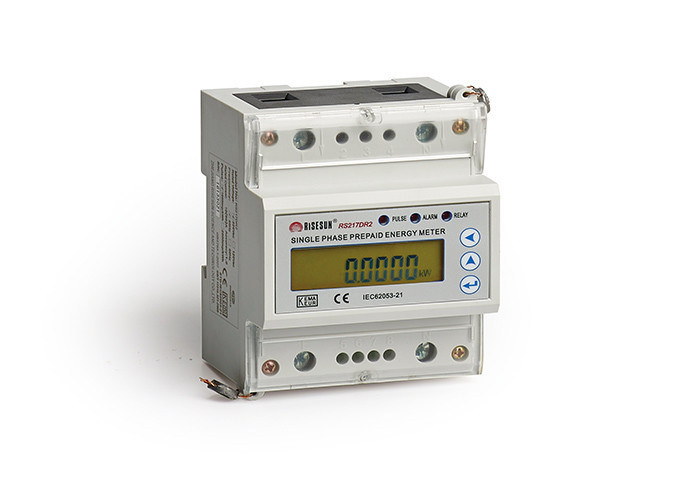

Single Phase STS Prepaid DIN RAIL Electronic Energy Meter
General introduction
Single Phase STS Prepaid DIN RAIL Electronic Energy Meter can exchange information based on TOKEN complying with STS, it can be charged through network or button, the meter will automatically disconnect the load when the credit is low and detect the abnormal circuit; It adopts DIN RAIL standard, with features of easy installation, small size and light weight.
Main Function
1) 35mm DIN standard installation complying with DIN EN-50022
2) Metering and measuring
import, export and total active energy, reactive energy metering; voltage, current, power and power factor measuring
3) TOU
4 tariffs;2 sets of time period tables; 8 time periods can be set in 24 hours; support public holidays and weekends.
4) Audio and visual alarm
Low credit can be indicated and alarmed via buzzer and LED
5) Friendly power supply
Support emergency credit
6) Events logs(power purchasing, power outage, overload, under voltage, over voltage, current reverse, etc.)
7) Load control
Relay inside,it can disconnect the load under low credit or overload
8) Communication interface
1 channel RS485
9) Firmware upgrade
Meter firmware can be upgraded via RS485
Technical specifications
| Items | contents |
| Standards | IEC62052-11; IEC62053-21;IEC62055-31/41/51 |
| Accuracy | Class 1 |
| Protocol | MODBUS |
| Reference voltage | 120V / 220V / 230V / 240V |
| Current | 10(80) A |
| Reference frequency | 50/60 Hz |
| Power consumption | <1.5W,6VA |
| Operation voltage range | 0.8Un~1.2Un |
| Limited operation voltage range | 0.7Un~1.3Un |
| Operation temperature range | -25℃~ +60℃ |
| Limited operation temperature range | -40℃~ +70℃ |
| RTC deviation | ≤0.5s/d |
| Life time | 15 years |
| Size | 94mm(L)×75mm(W)×65mm(H) |
| Net weight |
About 0.36 kg |
