|Name:||Dlt 645 2007 Single Phase Smart KWh Meter With Built In Module||Technical Standards:||IEC62052-11; IEC62053-21|
|Reference Frequency:||50/60Hz||Power Consumption:||<1.5W,6VA|
Dlt 645 Single Phase Smart KWh Meter,
Dlt 645 2007 Smart KWh Meter,
Dlt 645 single phase smart energy meter

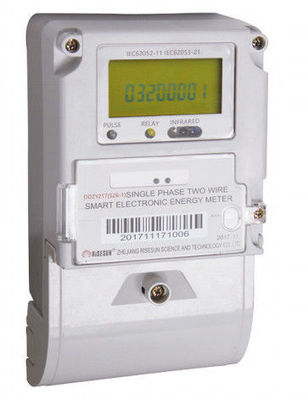

Single Phase Smart Energy Meter with Built-in Module
50/60Hz Single Phase AMI Smart Energy Meter can measure the import and the export active energy,and is with TOU and step tariff functions, and can be with PLC or RF module for communication, and can be controlled to disconnect or reconnect the load remotely.
1. Display and indication: It adopts a large screen LCD with abundant graphics and hint text. The displayed contents can be scrolled automatically or by button, and the displayed items can be configured as per the requirements. It is with backlight. Meter can be read during power outage.
2. Metering and measurements: It can measure the import and the export active energy and the total active energy. The total active energy can be configured by the import and the export active energy as per the requirements. It can measure voltage, current, power, power factor, neutral current(optional), etc.
3. TOU:4 tariffs; Built-in 2 sets of time zone tables and 2 sets of daily period tables, which can be configured as per the requirements. The switching time for both 2 sets of time zone tables and 2 sets of daily period tables can be set and achieve the mutual switching. It can set 14 time intervals and 254 holidays.
4. Data Snapshot: It supports freezing which includes daily freezing,hourly freezing, occasional freezing, immediate freezing.
5. Event logs: It can separately record latest 10 times events, such as power outage, programming, time correction, meter cover open,disconnection/re-connection, reset of events, reset of meter, etc.
6. Communication interface: The meter has one far infrared communication interface, one RS-485 communication interface and one PLC/RF (PLC and RF can be changeable.) communication module interface. Interfaces are independent with each other. The protocol of meter conforms to DL/T645-2007.
|Techniacl Standards||IEC62052-11; IEC62053-21|
|Accuracy||Active: Class 1|
|Reference frequency||50 / 60Hz|
|Operation voltage range||0.8Un~1.2Un|
|Limited operation voltage range||0.7Un~1.3Un|
|Operation temperature||-25℃~ +60℃|
|Limited operation temperature range||-40℃~ +70℃|
|Life time||15 years|
|Net weight||About 0.6kg|
