Multifunction Smart Electricity Meters Class 2.0 Accuracy IEC 62052 11 2003

Multifunction Smart Electricity Meters Class 2.0 Accuracy IEC 62052 11 2003
Multifunction Smart Electricity Meters Class 2.0 Accuracy IEC 62052 11 2003

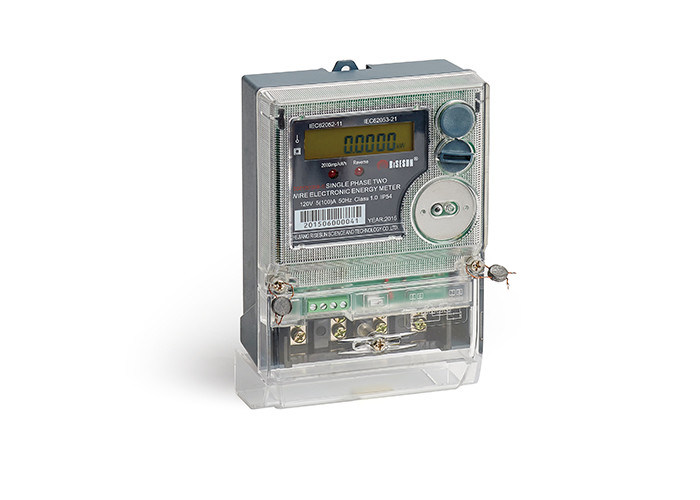

Large Image :  Multifunction Smart Electricity Meters Class 2.0 Accuracy IEC 62052 11 2003

Product Details:
Place of Origin: China. Zhejiang
Brand Name: DDZY217
Certification: KEMA
Model Number: RISESUN
Payment & Shipping Terms:
Minimum Order Quantity: 500 pcs
Price: negotiation
Packaging Details: Carton
Delivery Time: 30 work days
Payment Terms: L/C, T/T,negotiation
Supply Ability: 100,000 pcs per month

Multifunction Smart Electricity Meters Class 2.0 Accuracy IEC 62052 11 2003

Name: STS Split Smart Prepaid Electricity Meter Cass 1 Accuracy IEC 62055 51 Technical Standards: IEC62052-11;IEC62053-21;IEC62053-22;IEC62053-23
Accuracy: Class 1.0 Or Class 2.0 Protocol: IEC62056-21
Reference Voltage: 120v/ 220V/ 230V/ 240V Current: 5(20)A,5(60)A,5(100)A,10(40)A,10(80)A,10(100)A,15(100)A,20(100)A
Operation Voltage Range: 0.8Un~1.2Un;
High Light:

IEC 62052 11 2003 smart multifunction meter


IEC 62052 11 2003 Smart Meter


IEC 62052 11 2003 Electric Smart Metre

Single Phase Multifunction Smart Meter


General introduction


Single Phase Multifunction Smart Meter is used not only for measuring the single phase a.c. active energy, but also for measuring the Maximum Demand, and it can be with Infrared port or RS485 for communication, and it is also with the function of multi-tariff and the anti-tamper, etc.. It adopts the high quality long lifetime components and SMT manufacturing craft, and is reliable in performance. It conforms to the standards of IEC 62053-21:2003, IEC62052-11:2003 and IEC62056.


Technical specifications

Items contents
Techniacl Standards IEC62052-11; IEC62053-21;IEC62053-22 IEC62053-23
Protocol IEC62056-21
Accuracy Class 1.0 or Class 2.0
Reference voltage 120V/220V/230V/240V
Current 5(20)A,5(60A,5(100)A,10(40)A,10(80)A,10(100)A,15(100)A,20(100)A
Reference frequency 50 or 60Hz±5%
Power consumption ≤1.0W,8VA
Operation voltage range 0.8Un~1.2Un
Limited operation voltage range 0.7Un~1.3Un
Operation temperature -25℃~ +55℃
Limited operation temperature range -40℃~ +70℃
RTC deviation ≤0.5s/d
Life time 15 years
Size 170.5mm(L)×112mm(W)×58mm(H)
Net weight About 0.6kg


Main functions

1. Multifunction: It can measure the active energy and maximum demand. It is with the function of multi-tariff and the anti-tamper. It can be with    Infrared Port or RS-485 for communication, etc..

2. Multirate:4 tariffs; 8 yearly time zones; 4 sheets of period of time; 12 daily periods of time; 12 festival and holidays; Weekly rest days.

3. High accuracy: Adopting the high quality specializing metering chip; Reliable errors; Good linear; No need for calibration for a long term  service.


4. Stability and reliability: Wide range of operating voltage; Strong ability to withstand the disturbance and overloading.

5. Long lifetime: Adopting the advanced SMT manufacturing craft; High quality long lifetime of main components.

6. Low Power Consumption: Adopting the best design; Low self power consumption.

7. Events log: Records of starting the meter, setting the clock, resetting the maximum demand and programming the meter etc.


8.12 months' quantities of electricity: Records of the total quantities of electricity, the quantities of electricity of 4 tariffs and the others relevant quantities of electricity over the 12 months.

9. Communication function: It can be with Infrared port for communication. Programming and meter reading on site can be done by using the infrared hand held unit(HHU); RS485 is also can be available on request.

10. Control of energy consumption(option): Adopting the magnet-keeping relay; The valid control of power or off; Stable operation.

11. Tamper and fraud protection: Bidirectional measurement; With the protection function of the short circuit, the reversal connection of phase wire and neutral wire, and the neutral wire connecting to the earth.

12. With KEMA Certificate.



Our advantages


Basing on technology, quality, marketing and other comprehensive advantages, Risesun devotes to creating its own brand, and has won many honorary titles, including China Famous Trademark, National High-tech Enterprise, Provincial Enterprise Technology Center of Zhejiang Province, Zhejiang Province Famous Company, Zhejiang Famous Brand Products, AAA Level Enterprise to Keep Contract and Credit, AAA Class Tax Paying Enterprise, and successive Top 100 Good Credit and AAA Enterprise of banking system. With its brand and other comprehensive advantages, Risesun has been elected as the director unit of China Instrument and Meter Industry Association, and the member unit of the national standard revision group of National Standards Technical Committee for Electrical Measuring Instruments.


Basing on years of operating experiences in electric power industry and with the help of the reform of national electric power system, the support policy to new energy and the good situation of internet plus, Risesun continues to extend, transform and break its existing business fields, and is now actively involved in researching, developing and manufacturing the charging piles of electric auto, and devotes to creating the O2O circulation of “online APP, charging network and offline equipment”, and implementing an industrial layout of human, auto and pile in series. The products with multiple certifications can meet various demands for both AC and DC charging.

Warmly welcome the friends to visit Risesun. We are willing to work with you hand in hand for creating the excellence together.




Q: What kind of timing functions do smart energy meter have? How about the accuracy?


A: Smart energy meter adopts built-in hardware clock circuit with temperature companion function, which has automation conversion function among calendar, time and leap year; the output frequency of internal clock terminals of energy meter is 1 Hz. Within the temperature range of 25~+60℃, the clock accuracy is ≤±1s/d; Under the reference temperature (23℃), the clock accuracy is ≤±0.5s/d. It adopts green environmental protection lithium battery as standby power supply, and the capacity of battery is more than 1.2Ah. During the life cycle of energy meter, the battery needn’t to be changed, and it can make internal clock work correctly for more than 5 years after power outage.
