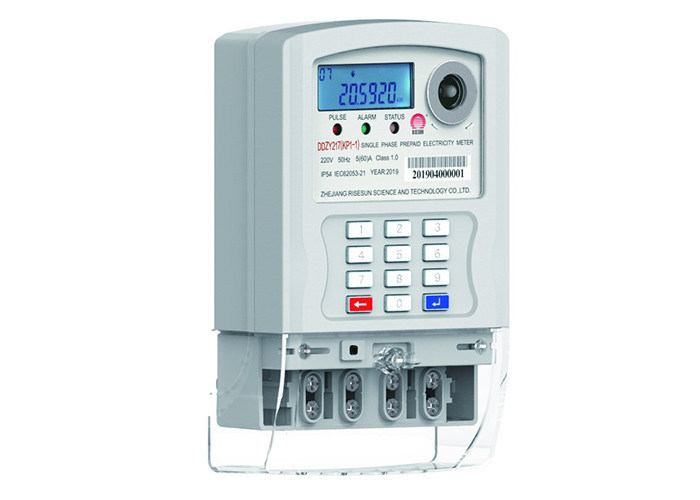

UIU Single Phase Keypad Electricity Meter Communication As Per IEC62056 21

UIU Single Phase Keypad Electricity Meter Communication As Per IEC62056 21
UIU Single Phase Keypad Electricity Meter Communication As Per IEC62056 21 UIU Single Phase Keypad Electricity Meter Communication As Per IEC62056 21

Large Image :  UIU Single Phase Keypad Electricity Meter Communication As Per IEC62056 21

Product Details:
Place of Origin: China. Zhejiang
Brand Name: RISESUN
Model Number: DDZY217(KP1-1)
Payment & Shipping Terms:
Minimum Order Quantity: 500 pcs
Price: negotiation
Packaging Details: Carton
Delivery Time: 30 work days
Payment Terms: L/C, T/T,negotiation
Supply Ability: 100,000 pcs per month

UIU Single Phase Keypad Electricity Meter Communication As Per IEC62056 21

Description
Name: UIU Single Phase Keypad Electricity Meter Communication As Per IEC62056 21 Keyword: Smart Electricity Meters
Accuracy: Active:Class 1 Reference Voltage: 120V/220V/230V/240V
Power Consumption: <1.5W,6VA Protocol: IEC62056-21
Reference Frequency: 50/60 Hz Net Weight: About 0.7kg
High Light:

IEC62056 21 Single Phase Keypad Electricity Meter

,

IEC62056 21 Single Phase uiu prepaid meter

,

IEC62056 21 Keypad Single Phase Metre

Single Phase Keypad Meter communication as per IEC62056-21

General introduction

Single Phase Keypad Meter communication as per IEC62056-21 has the functions such as metering, monitoring, alarm, display, communication and load control, etc. It adopts STS standard encryption algorithm to exchange the information based on TOKEN, Advantages of the meter are high metering accuracy, high level security, strong compatibility, easy operation, etc.

Main functions

  • Support UIU
  • UIU communication interface: PLC, RF or twist-wire are optional.
  • Step tariffs
  • TOU: Four tariffs; two sets of time zone tables; two sets of time period tables; support public holidays and weekends.
  • Friendly power supply:Support emergency credit.
  • Communication interface: Optical port and RS485 interface are available;PLC,RF,GPRS and twist-wire interface are optional.
  • Events logs:Detecting and recording events such as current reverse, magnetic influence, phase bypass, meter cover open, terminal cover open, overvoltage, under voltage, etc.
  • Anti-tamper: Detecting current reverse, magnetic influence, phase bypass, meter cover open, terminal cover open etc., at the same time, the meter can disconnect power supply which is configurable when the tampers occur.
  • Audio and visual alarm: Audio and visual alarm which can be configurable can be for power flow reverse, magnetic influence, phase bypass, meter cover open, terminal cover open, etc.
  • Load control: Detecting the customer's load status, it can alarm or disconnect the load when overload.

Technical specifications



Items contents
Standards IEC62052-11; IEC62053-21;IEC62053-23; IEC62055-31;IEC62055-41;IEC62055-51;
Accuracy Active:Class 1
Protocol IEC62056-21
Reference voltage 120V/220V/230V/240V
Current 5(60)A,10(80)A
Reference frequency 50/60 Hz
Power consumption <1.5W, 6VA
Operation voltage range 0.8Un~1.2Un
Limited operation voltage range 0.7Un~1.3Un
Operation temperature -25℃~ +60℃
Limited operation temperature range -40℃~ +70℃
RTC deviation ≤0.5s/d
Life time 15 years
Size 184mm(L)×120mm(W)×55mm(H)
Net weight About 0.7kg



Prepaid Power Vending Management System

System introduction
Prepaid power vending management system is based on power vending management software and database with the devices of computer, charging machine, prepaid meters, printers and security modules, etc. The system can configure the meter parameters, manage power vending and electricity consumption, it can report and manage data with effective safety. The system includes remote prepaid, local prepaid and postpaid functions. The system integrates metering, electronic, automation and computer technology to realize the modernization of energy metering, load control, charging, etc.

System Architecture

 UIU Single Phase Keypad Electricity Meter Communication As Per IEC62056 21 0
